HYCHIKA HVLP Paint Sprayer Nozzle Set for 600W Sprayer
BUYING ACCESSORIES OR REPLACEMENT PARTS?
Confirm compatibility before ordering. Check your tool model, product photos, voltage, size and specifications before placing the order.PRODUCT DETAILS
About this product
HYCHIKA 4-Piece Replacement Nozzle Set — For EP013 600W HVLP Paint Sprayer
This is the official 4-piece replacement nozzle set for the HYCHIKA EP013 600W HVLP Auto Paint Spray Gun. It includes all four standard nozzle sizes (1.5mm, 1.8mm, 2.2mm, and 2.6mm) in one kit — ideal for replacing worn or blocked nozzles, or keeping a full spare set ready for any project.
⚠️ Nozzles only. The spray gun, paint cup, and gun head are not included. Designed exclusively for the HYCHIKA EP013 600W HVLP spray gun.
Which Nozzle Do You Need?
Each size is optimized for a specific material viscosity and coating type. Use this guide to match the right nozzle to your project:
| Nozzle | Material Type | Best Applications | Viscosity |
|---|---|---|---|
| 1.5mm | Clearcoats, sealers, tinted varnish | Clearcoat application, gloss sealing, spot blending | Thin (25–40 DIN/s) |
| 1.8mm | Water-based basecoats, single-stage paints | Full panel resprays, color matching, touch-up | Medium (35–55 DIN/s) |
| 2.2mm | Automotive primers, epoxy primer, filler primer | Priming bare metal, rust repair prep, body filler sealing | Medium-high (50–70 DIN/s) |
| 2.6mm | High-build primer, rubberized undercoating, thick enamel | Underbody coating, chassis protection, heavy surface prep | High (70–100 DIN/s) |

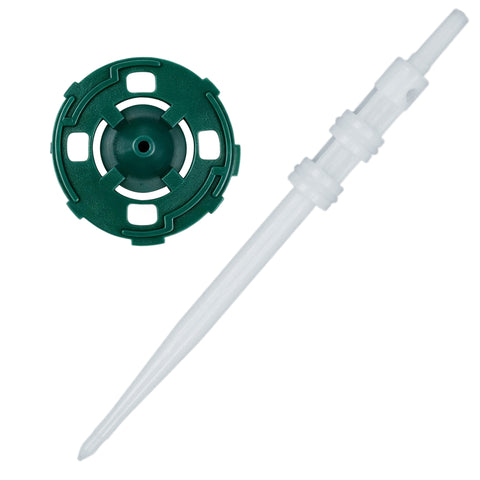

Need ultra-fine detail work? The 1.2mm nozzle is available separately.
When Should You Replace Your Nozzle?
- Spray pattern becomes uneven, sputters, or shows "tiger striping"
- Paint drips or runs despite correct viscosity and distance
- Nozzle is partially blocked and can't be fully cleared by cleaning
- You're switching to a different paint type that requires a different orifice size
- Nozzle tip shows visible wear or damage around the orifice
Compatibility
- Designed for: HYCHIKA EP013 600W HVLP Auto Paint Spray Gun
- Replaces the standard nozzles that come included with the EP013
- Not compatible with other spray gun brands or models
Package Includes
- 1× 1.5mm Replacement Nozzle
- 1× 1.8mm Replacement Nozzle
- 1× 2.2mm Replacement Nozzle
- 1× 2.6mm Replacement Nozzle
FAQ
Q: Will these fit my HYCHIKA spray gun?
This set is designed specifically for the HYCHIKA EP013 600W HVLP paint sprayer. If you're unsure, check your gun's model number before ordering.
Q: Does this set include the 1.2mm nozzle?
No — this set includes 1.5mm, 1.8mm, 2.2mm, and 2.6mm only. The 1.2mm nozzle is sold separately.
Q: How do I swap the nozzle?
Unplug the gun and empty the paint cup. Unscrew the air cap, remove the old nozzle, fit the new one, and hand-tighten. Reattach the air cap and do a test spray before starting your project.
Q: Can I use different nozzle sizes for the same project?
Yes — many automotive painters switch between sizes for different stages. For example: 2.2mm for primer, 1.8mm for basecoat, 1.5mm for clearcoat.
Not sure which size you need for your paint? Contact our team — tell us what you're spraying and we'll recommend the right nozzle.
